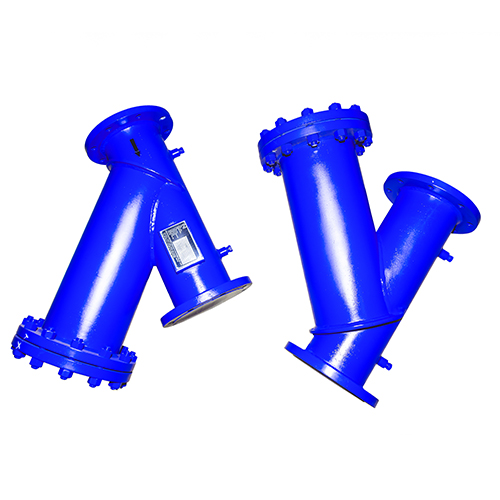

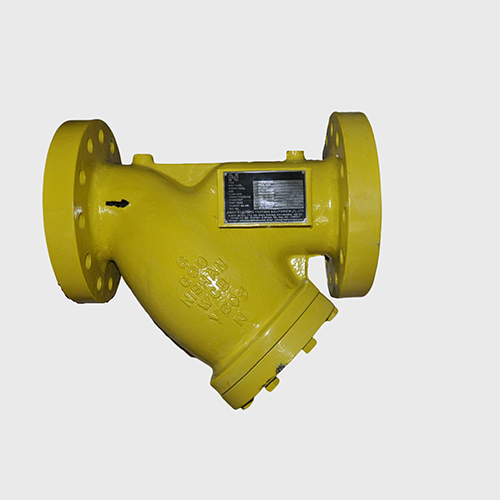

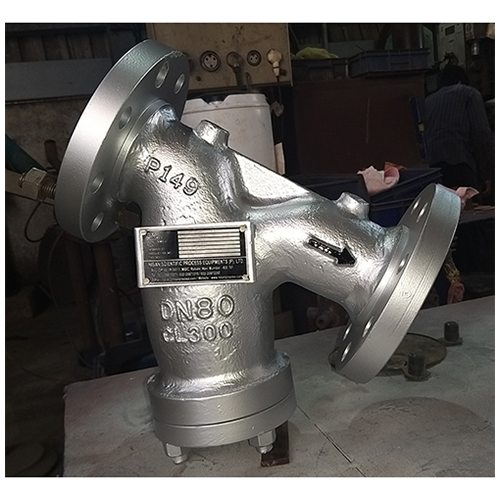

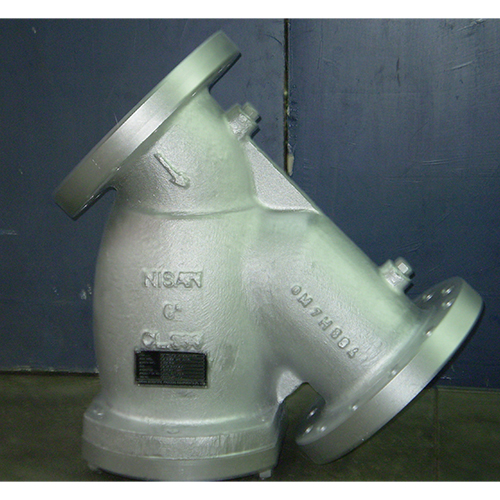

Y Type Strainer
Pressures to 3705 PSIG Temperatures to 800°F
Y-strainers are used to remove solids from liquid.gas.or steam applications in small volumes. Y-strainers can be fitted with a blow off connection on the cover.to permit cleaning the screen without removing the cover. Y-strainers are offered in 150# to 1500# class. These strainers are designed for improved with trouble free service. These are easy to install and prevents the introduction of foreign matter in the pipelines. This saves the reoccurring expenditure in costly repairs and replacements. We also provide customization facility to our clients at competitive prices.
Technical Specifications
- Material of construction Housing : Carbon steel, Stainless steel in various grades, - Other materials and coatings available on request
- Filter Element: Carbon steel, Stainless steel in various grades - Other materials available on request.
- End connection: Flanged (As per requested Table.), Threaded (NPT or BSP)
- Sizes : Sizes are available from 1/2" Line size to 24" Line size. Other/Higher sizes available on request
- Filtration rating: Filtration rating available from 1 micron to 1000 microns
- Pressure rating: Up to 1000 PSI. High-pressure ratings available on request

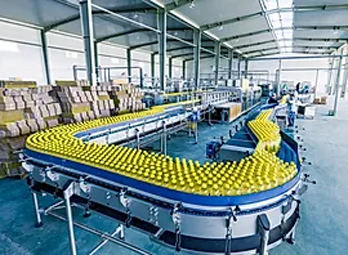

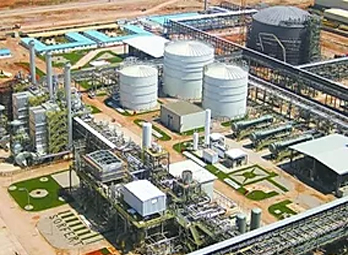

Applicable Industries
Process Industry
Metals and Mining
Power Industry
Water and Waste
Chemical Industry

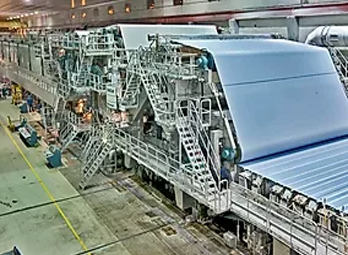

Pulp and Paper
Oil & Gas
Design Features
- Available with RF and FF flange.
- Custom fabrication can be done for very high pressure.
- Can be installed in horizontal or vertical pipelines.
- Drain connections are standard and are furnished with plug.
- Perforated screen with 40 Mesh linings are standard.
- Other linings shall be done on request.
- Drain can be provided with valve on request.
- Tomeet cryogenic application with suitable MOC
- Tomeet high temperature with suitable gasket and MOC.
- Free straining are 4 times of pipe cross section are standard.
- Screens with higher free straining area on request.
Products Applications
- Pump protection
- Flow meter protection
- Protection of steam traps
- Valve and regulator protection
- Protection of heat exchanger and refrigerating set
- Instrumentation and ancillary pi ping item protection
